PLEASE NOTE: THIS IS REDFOOT'S STABILISATION SYSTEM. IT IS NOT THEIR LIFT SYSTEM.

Benefits:

• Reduces setup time, be level in minutes
• Prevents van rocking and motion
• Light weight system only weighs 58kg
• Great lifting capacity of up to 2 tonnes, can be used to level caravans below 2 tonnes ATM

• No more bending down to manually deploy your stabiliser legs

• Eliminates caravan lean with slide outs

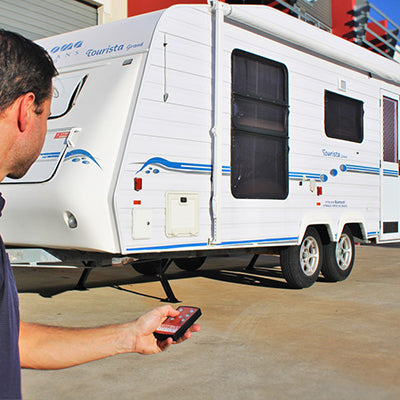

• Simple to operate using wireless remote keypad
• Convenient, push button operation
• Low profile for maximum clearance when travelling
• Standard with manual override feature

It is no wonder the Redfoot Caravan Stabilisation System has quickly become the number one choice for Caravan owners. Utilising four electric motorised legs, the Redfoot Caravan Stabilisation system can extend and retract the legs using the easy touch button operation that operates each legs independently.

Stabilisation vs Lift Systems

Choosing between a Redfoot Caravan Stabilisation System and a full Redfoot Hydraulic or Heavy-Duty Levelling/Lift System boils down to a single question: Are you trying to stop your van from rocking, or do you need to physically lift it off the ground to level it?

Both systems replace the pain of manual cranking, but they serve completely different structural purposes.

1. Redfoot Caravan Stabilisation System

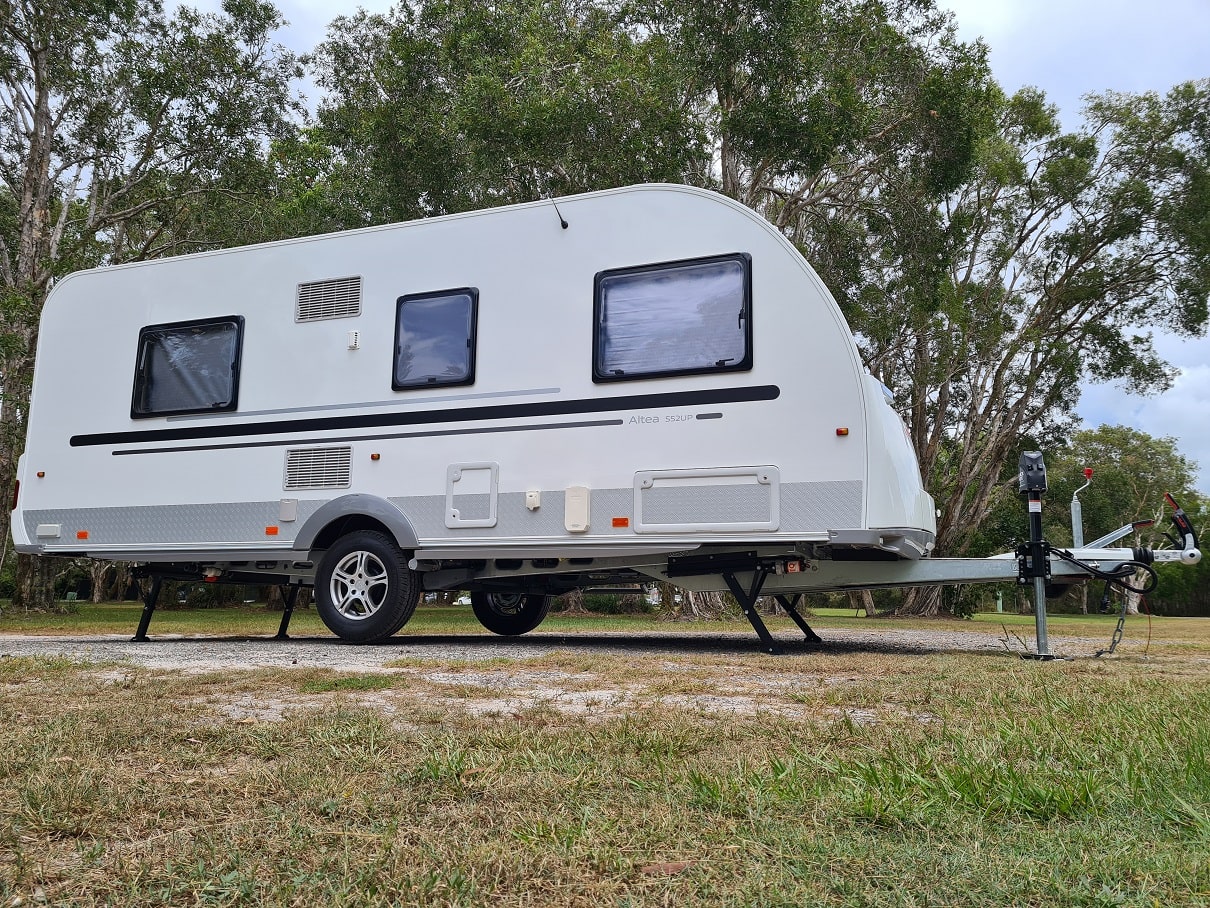

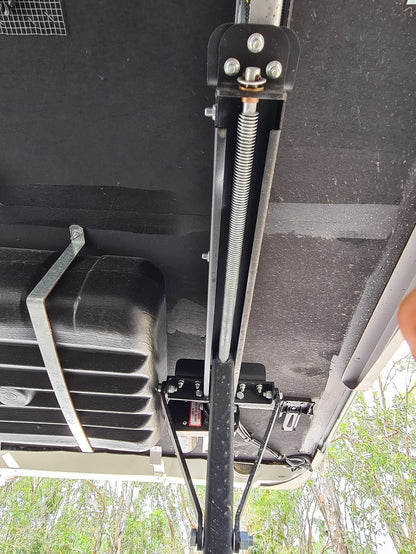

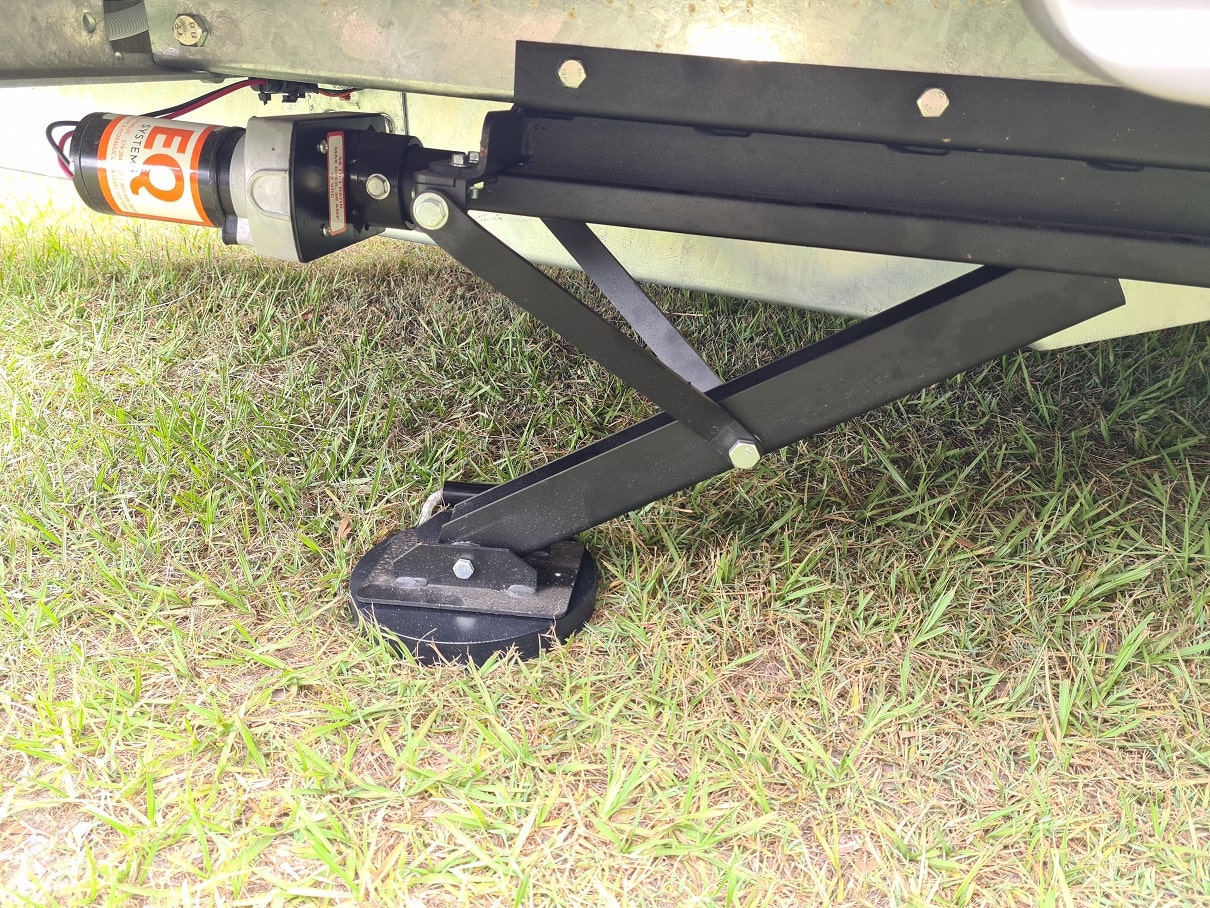

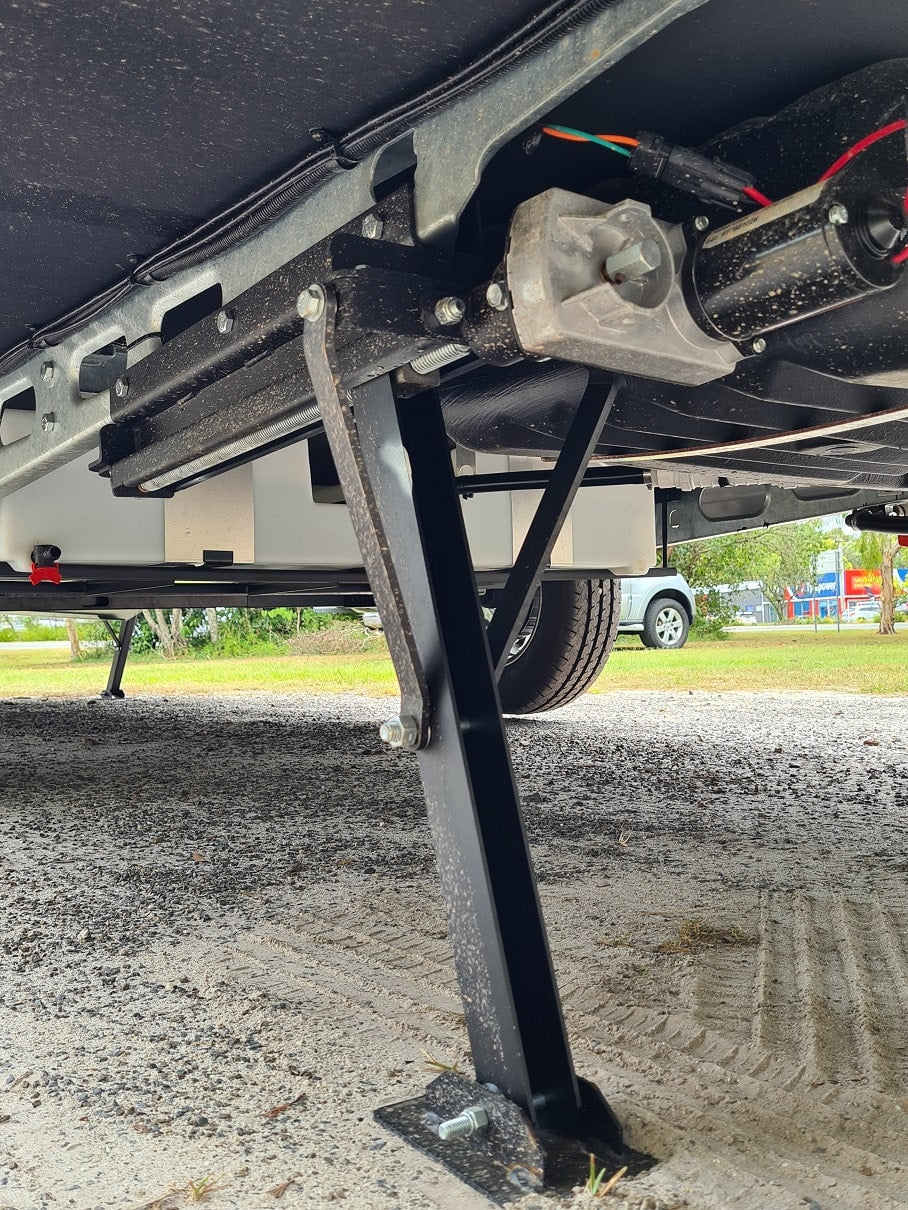

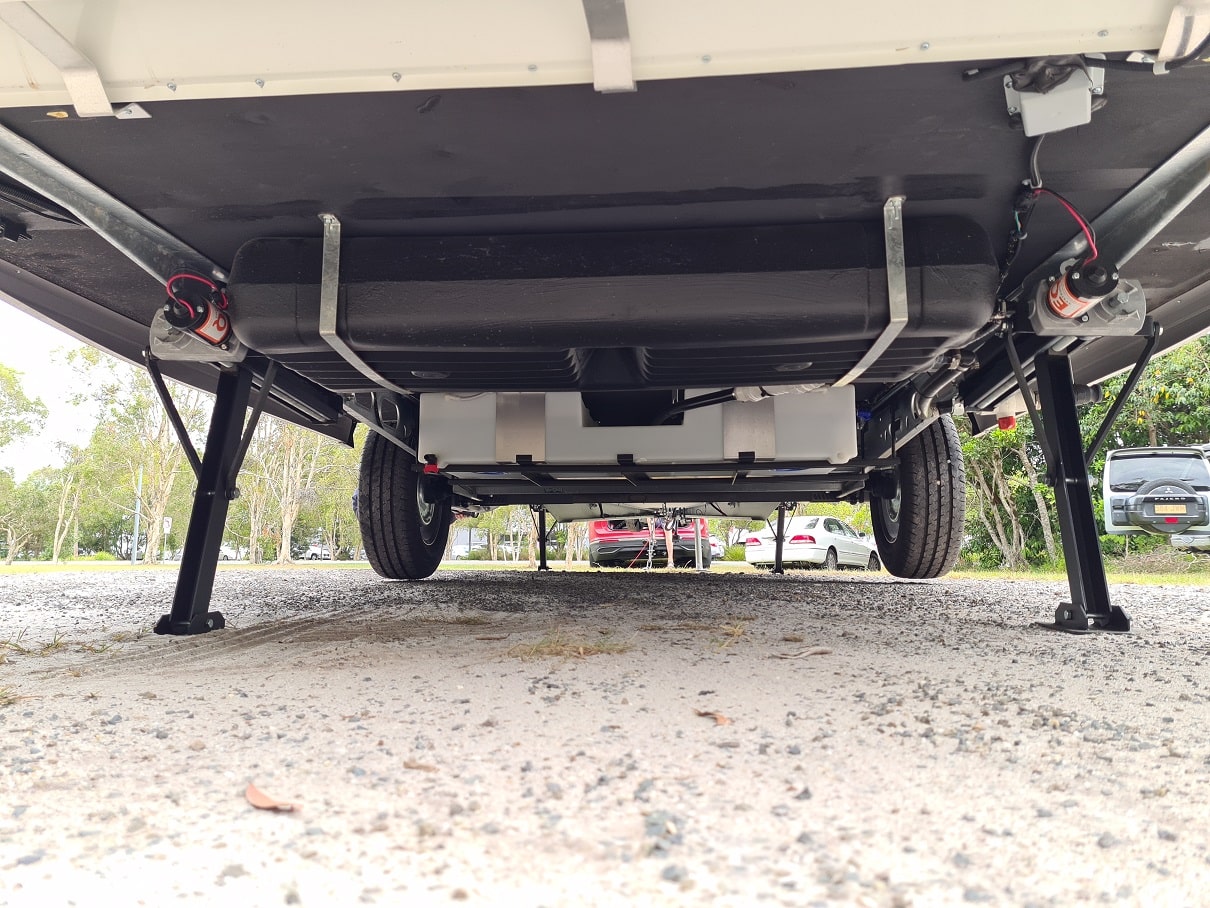

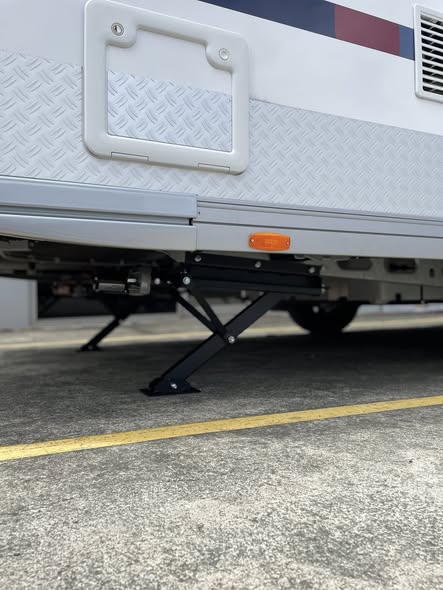

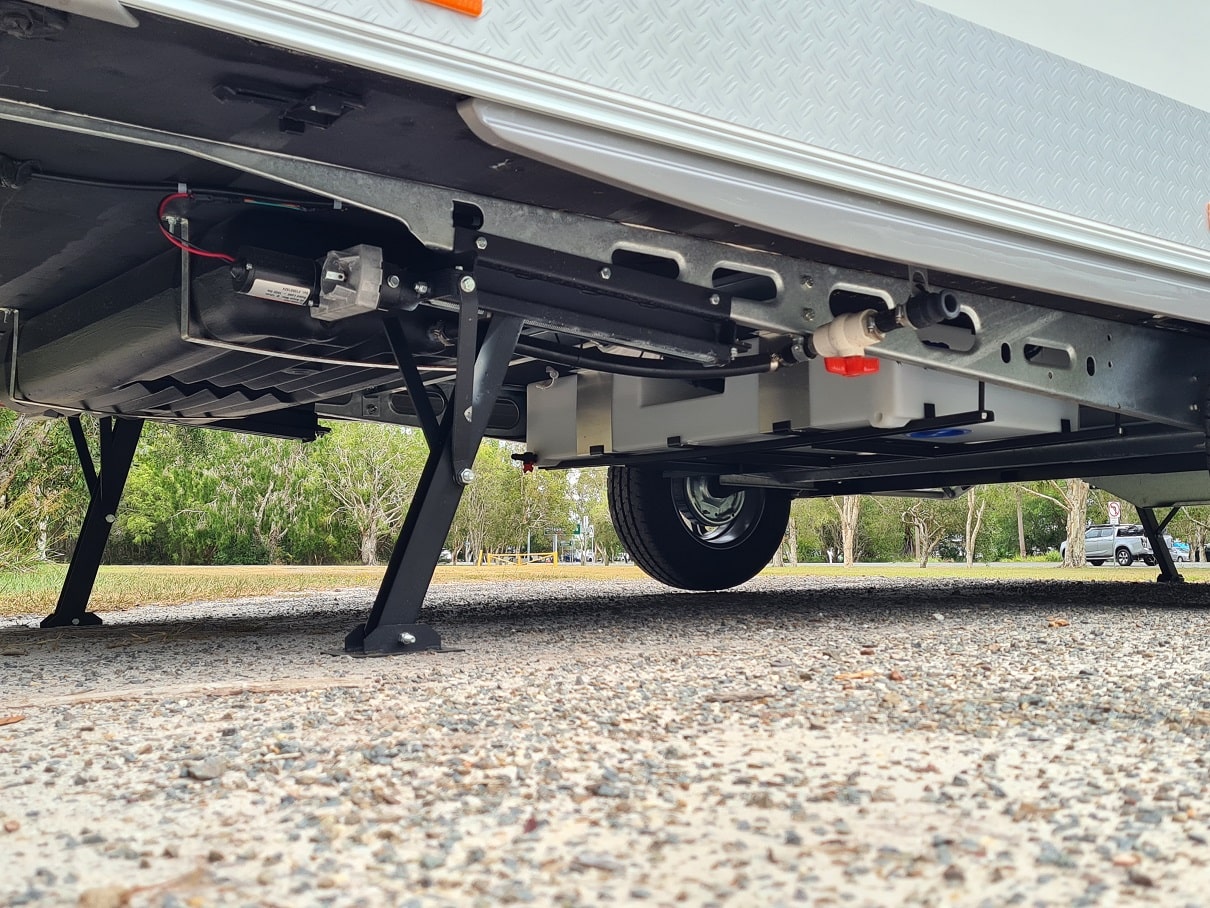

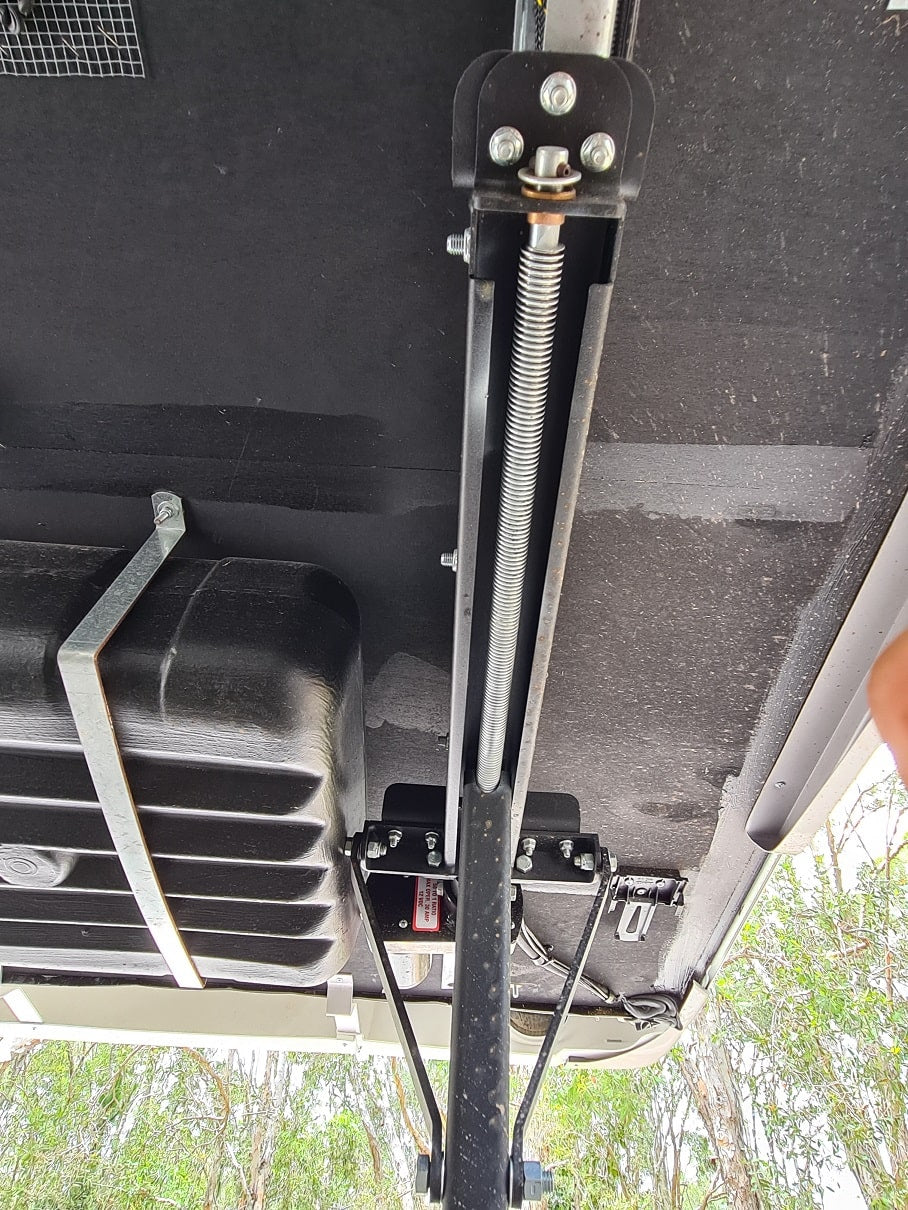

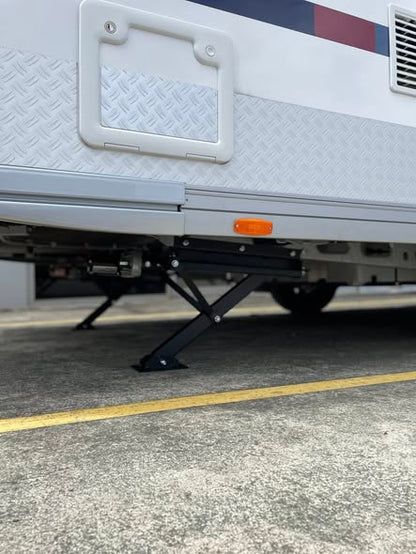

This system features four independently controlled electric motorized legs designed to replace your traditional manual corner steadies.

How it works: You park your van, use standard ramps or blocks to get the caravan roughly level, and then press a button on a remote control to drop the legs down until they firmly brace the chassis against the ground.

Weight & Capacity: It’s a relatively lightweight system (~57kg) with a general supporting capacity up to 2,000kg. It provides roughly 100mm of minor adjustment lift.

Choose the Stabiliser System if:

Your primary goal is stopping movement: You are sick of the van rocking when someone rolls over in bed, steps inside, or when the slide-outs are extended.

You have a lighter caravan: Your van's Gross Trailer Mass (GTM) is under 2 tonnes.

You don’t mind basic ramp leveling: You are perfectly fine driving up onto plastic ramps or blocks to level the axle, but you just want to get rid of the physical strain of bending down to wind down the corner legs.

Budget and payload are priorities: The stabiliser system is more affordable and has a lighter impact on your caravan's total payload capacity.

2. Redfoot Hydraulic or AutoLift Levelling Systems

These are heavy-duty, one-touch automatic systems utilizing robust hydraulic or massive electric jacks permanently bolted directly to the main chassis rails.

How it works: You pull up to a terribly uneven campsite, push a single button, and the system automatically calculates the slope and physically lifts the entire caravan off its suspension to level it in less than 90 seconds—no chocks or ramps required.

 Weight & Capacity: These are incredibly strong setups capable of lifting large, heavy dual-axle caravans or motorhomes (often rated up to 6,000kg total lift).

Choose the Lift/Levelling System if:

You want a true "one-touch" setup: You want to skip wheel ramps, spirit levels, and manual chocking entirely. The jacks independently adjust to the terrain automatically.

You travel in a heavy or large rig: You own a large dual-axle caravan, a heavy off-road hybrid, or a motorhome that easily exceeds 2–3 tonnes.

You want to lift the wheels for maintenance: Because these are true lifting jacks, they can raise the caravan's wheels entirely off the ground, making changing a flat tire on the side of the road significantly safer and easier.

You have appliances highly sensitive to tilt: If you run high-end 3-way fridges or medical equipment (like CPAP machines) that fail if the van has even a minor tilt, the precise auto-levelling logic is worth the investment.

Direct Comparison

A Quick Warning on Ground Clearance: Before committing to the Stabiliser system, measure your under-chassis-to-ground clearance. Redfoot notes that if your clearance is above 450mm (common on some high-riding off-road setups), the stabilizer legs may not have enough extension reach to work properly without stacking blocks underneath them.
